HWATEK 철사와 케이블 CO., 주식 회사.
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 지휘자: | 나동선은 좌초했습니다 | 격리: | EVI-2 |
|---|---|---|---|
| 재킷: | EVM-1 | 애플리케이션: | EV 충전 케이블 |
| 전압: | 450/750V AC | 온도: | -40~90℃ |
| 포장: | 릴에서 싸여집니다 | HWATEK: | HT2500226 |
| 강조하다: | Bare Copper Stranded EV Charging Cable,EVI-2 Insulation Electric Vehicle Charging Cable,EVM-1 Jacket EV Power Cable |
||

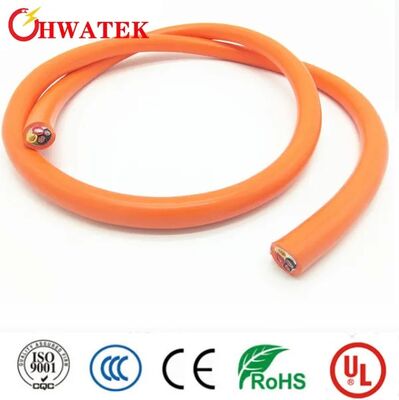

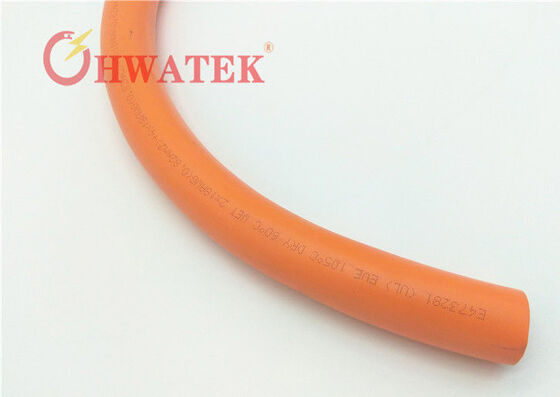

Customize 5C×4mm2+1C×0.5mm2+W Bare copper stranded EV CABLE wIth EVI-2 Insulation EVM-1 Jacket

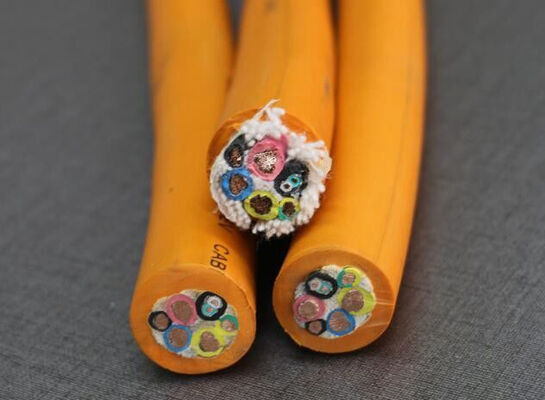

| Construction | ||||
| A:5C×4mm2 | B:1C×0.5mm2 | |||
| Conductor | Bare copper stranded | |||
| Cross section | 4mm2 | 0.50mm2 | ||
| Construction | 210/0.15mm+Tinsel+ Kevlar | 28/0.15mm+Tinsel+ Kevlar | ||
| Strand Dia.(Ref.) | 2.70mm | 1.15mm | ||
| Insulation | EVI-2 | |||
| Nom.Thickness | 0.70mm | 0.40mm | ||
| Min.Thickness | 0.53mm | 0.30mm | ||
| Insulation Dia. | 4.30±0.25mm | 2.00±0.10mm | ||
| Insulation colour | A1.brown A2.blue A3.black A4.gray A5.yellow/green | B1.black | ||
| Filler | PP rope | |||
| Tape | Non woven | |||
| Assembly | 5C×4mm2+1C×0.5mm2+W | |||
| Jacket | EVM-1 | |||
| Nom.Thickness | 1.30mm | |||
| Min.Thickness | 1.04mm | |||
| Outer Dia. | 15.40±0.50mm | |||
| Colour | per request | |||
Product Description
Application:EV Charging
Product character:
Tensile strength:≥20MPa Elongation:≥300%
Aged condition:110±1℃×168h
Percent of original tensile strength:±30%
Percent of original elongation: ±30%
Insulation:EVI-2
Conductor : Bare copper stranded
Construction
Insulation: A1.brown A2.blue A3.black A4.gray A5.yellow/green B1.black
Jacket Color : per request
Technical data
Rated voltage:450/750V AC
Rated Temperature: -40-90℃
Max.conductor DC resistance(20℃):A:4.95Ω/km B:39Ω/km
Dielectric Strength AC:2.5kV/5min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
