HWATEK 철사와 케이블 CO., 주식 회사.
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 지휘자: | 나동선은 좌초했습니다 | 격리: | PP |
|---|---|---|---|
| 재킷: | TPU | 애플리케이션: | 산업, 가전제품 등 |
| 전압: | 300V | 온도: | -40-80- |
| 포장: | 릴에서 싸여집니다 | HWATEK: | HT2601022 |
| 강조하다: | Tinned Copper Stranded Industrial Flexible Cable,PP Insulation Industrial Flexible Cable,300V Rated TPU Jacket Cable |
||

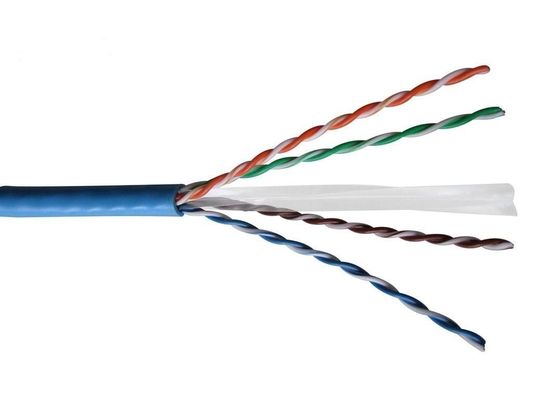

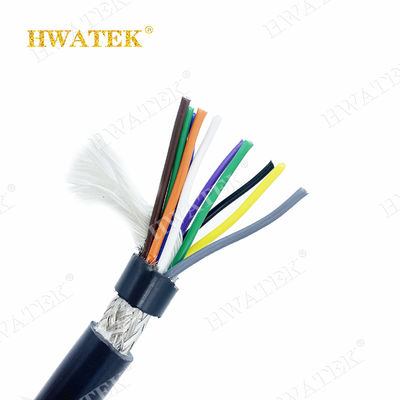

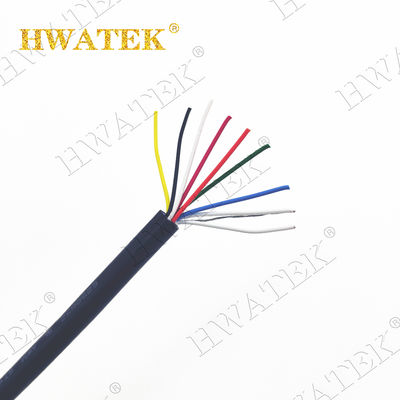

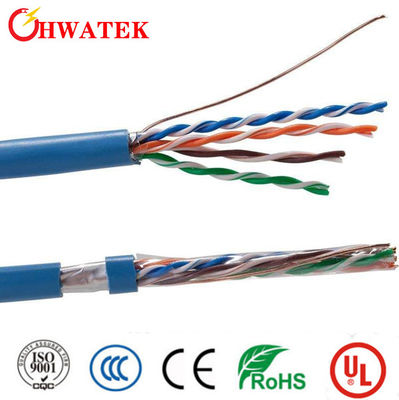

Customize 3×(1P×26AWG+DA+Hot mylar) Tinned copper stranded Industrial Flexible Cable wIth PP Insulation TPU Jacket
| Construction | ||||
| Conductor | Tinned copper stranded | |||
| Cross section | 26AWG | |||
| Construction | 7/0.16mm | |||
| Strand Dia. | 0.48mm | |||
| Insulation | PP | |||
| Nom.Thickness | 0.25mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | 1.blue&red 2.blue&white 3.bleu&gray | |||
| Twisted pair | 1P×26AWG | |||
| Drain | Tinned copper stranded,7/0.16mm | |||
| Material | Al-mylar(Face in),Overlap rate≥25% | |||
| Material | Hot mylar | |||
| Twisted O.D. | 2.286mm pitch:38mm | |||
| Material | Mylar,Overlap rate≥25% | |||
| Material | Al-mylar(Face in),Overlap rate≥50% | |||
| Filler | Polypropylene | |||
| Assembly | 3×(1P×26AWG+DA+Hot mylar)+Mylar+AM pitch:38mm | |||
| Jacket | TPU | |||
| Nom.Thickness | 1.27mm | |||
| O.D. | 7.20±0.30mm | |||
| Colour | Per request | |||
| Electric Performance | ||||||
| Rated Temperature | -40-80℃ | |||||
| Voltage rating | 300V | |||||
| Max.conductor DC resistance(20℃) | 150Ω/km | |||||
| Dielectric Strength AC | 2.00kV/1min | |||||
| Impedance | 3M:75±7Ω | |||||
| Boltage breakdown | Core to core 2KV AC | |||||
| Core to Shield 2KV AC | ||||||
| Sheld to shield 1KV AC | ||||||
| Insulation resistance(20℃) | Shield to shield 10MΩ·1000FT | |||||
| Core to shield 2000MΩ·1000FT | ||||||
| Inductance(1KHz) | 0.2UH/FT | |||||
| Capacitance(1KHz) | Core to shield 43pF/FT | |||||
| Core to core 21pF/FT | ||||||
Insulation:PP
Conductor : Tinned copper stranded
Construction
Insulation: 1.blue&red 2.blue&white 3.bleu&gray
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Technical data
Rated voltage:300V
Rated Temperature: -40-80℃
Max.conductor DC resistance(20℃):150Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
