HWATEK 철사와 케이블 CO., 주식 회사.
| 도체 자료: | 구리 | 외피 재료: | PVC |
|---|---|---|---|
| 단열재: | TPE | 재료 모양: | 둥근 와이어 |
| 정격 온도: | -40 ~ +105 ° C | 정격 전압: | 300V (EVJE, EVJT), 600V (Eve, EVT) |
| 지휘자 유형: | 맨손으로 맨손 또는 통조림 구리 | 화염 테스트: | 폭스바겐-1 |
| 와이어 사양: | 3 × 16AWG ~ 2 × 2AWG+4AWG+18AWG | 기준 전류: | 12a ~ 100a |
| 직경 범위: | 8.2mm ~ 30.1mm | 내한성: | 예 |
| 마모 저항: | 예 | 오일 저항: | 예 |
| UV 저항: | 예 | ||
| 강조하다: | 305m/610m Length EV Charging Cable,VW-1 Flame Test Electric Vehicle Charging Cable,300V/600V Rated EV Power Cable |
||
| Category | Wire Specifications | Reference Current (A) | Diameter (mm) |
|---|---|---|---|
| UL: EVE, EVT 600V | 3×16AWG | 12 | 10.8 |
| 3×14AWG | 16 | 13.4 | |
| 3×12AWG | 23 | 14.2 | |
| 3×10AWG | 32 | 16.2 | |
| 3×16AWG+1×18AWG | 12 | 11.4 | |
| 3×14AWG+1×18AWG | 16 | 13.6 | |
| 3×12AWG+1×18AWG | 23 | 14.3 | |
| 3×10AWG+1×18AWG | 32 | 15.9 | |
| 3×8AWG+1×18AWG | 46 | 21.8 | |
| 2×8AWG+10AWG+18AWG | 46 | 20.9 | |
| 2×6AWG+8AWG+18AWG | 63 | 23.1 | |
| 2×4AWG+6AWG+18AWG | 75 | 26.5 | |
| 2×2AWG+4AWG+18AWG | 100 | 30.1 | |
| 3×16AWG+2×18AWG | 12 | 12.1 | |
| UL: EVJE, EVJT 300V | 3×16AWG | 12 | 8.2 |
| 3×14AWG | 16 | 9.0 | |
| 3×12AWG | 23 | 10.1 | |
| 3×16AWG+1×18AWG | 12 | 8.8 | |
| 3×14AWG+1×18AWG | 16 | 9.5 | |
| 3×12AWG+1×18AWG | 23 | 11.2 | |
| 3×16AWG+2×18AWG | 12 | 9.5 | |
| 3×14AWG+2×18AWG | 16 | 12.1 | |
| 3×12AWG+2×18AWG | 23 | 13.2 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The sheath color is generally black or orange, but can be customized upon request.

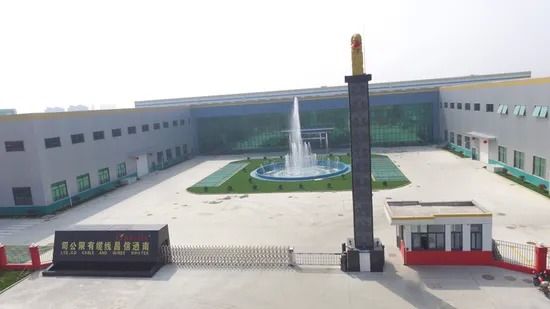

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.
In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, and ISO13485 systems, all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
담당자: Jimmy Wang
전화 번호: 17715039722
